GammaSight

A rugged, pocket-sized radiation detector and multi-channel analyzer that utilizes an Android operating system for fast results in the field.

Price and delivery TBA.

Category:

Description

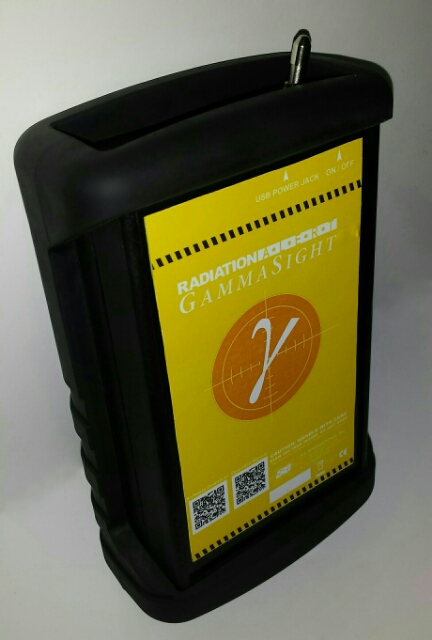

GammaSight™ is a rugged, pocket-sized radiation detector and multi-channel analyzer that utilizes an Android operating system for user interface, data storage, and transmission. The small, lightweight GammaSight™ detector provides radionuclide identification and spectrum analysis in a very portable package. The detector module works with users’ standard Android smartphones and tablets via wireless Bluetooth connectivity for visual display of measurement results, map overlay, text messaging, data storage, and follow-up analysis. This approach allows for the development of customized applications to address specialized needs.

Detector Options
20x20x20 mm cube LaBr3(Ce) or 1 inch RCC LaBr3(Ce)
Auto gain stabilization feature
Nominal resolution <4% FWHM (Cs-137) for LaBr3(Ce)
Photon Energy Range: nominal 25keV to 2.5MeV

Spectrometry
Gamma spectral analysis with 512 multi-channel analyzer
Spectral data file consistent with ANSI N42.48 standard
Built-in libraries for gamma spectral analysis, consistent with ANSI N42.42
NORM, Medical, Industrial, SNM categories
Ability to build user defined libraries for special applications (e.g., power reactor, D & D remediation)
Quantitative in-field sample analysis using defined source geometries with optional sample jig

Power and Mechanical
Powered by four standard, user-replaceable AA batteries with 12+ hour battery life
USB External power adapter for extended operational life and continuous use during battery change-out

Environmental
Operating temperature: -20° C to 50° C
RF, magnetic, vibration, drop resistant
Water resistant enclosure, rated IP 65
ANSI N42.48 Drop tested enclosure.

Accessories
Carrying case for hands-free operation

Options
Base PC support software for data evaluation, mapping, spectral analysis, tracking/trending, reporting
Jig for Sample Analysis with Fixed Geometries
Screen Captures

Outputs
Bluetooth Wireless

Temperature Range
TBD

Weight
1.2 lbs (19.2 oz) with Boot
0.8 lbs (12.8 oz) without Boot

Size
107.4 x 172 x 53.98 mm (4.23 x 6.77 x 2.125 in.).

Includes
Ruggedized Boot, GammaSight Software for Android, and Instrument Calibration
