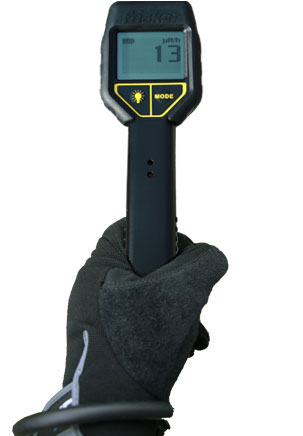

Radiation Alert® Frisker

$525.00

A light weight, single-handed radiation contamination instrument that has been designed to meet the demands of today’s radiation personnel for leak testing, surface monitoring, sample screening, and personnel screening.

Category:

Description

Sick of getting tripped up by cables? Want that free hand back? Tired of lugging around a meter the size of a lunch box? Presenting The Radiation Alert® Frisker . A light weight, single-handed radiation contamination instrument that has been designed to meet the demands of today’s radiation personnel for leak testing, surface monitoring, sample screening, and personnel screening. By integrating the latest electronics with a proven and dependable Geiger-Mueller detector, S.E. International has created a rugged, ergonomic tool that addresses a number of radiological applications. The Radiation Frisker detects alpha, beta, and gamma with an assortment of units of measure, customizable alarm levels, and a backlit display.

Detector
Halogen-quenched GM tube with thin mica end window. Mica window density 1.5-2.0 mg/cm2. Effective diameter of window is 45 mm (1.77 in.). Side wall is .012 inch thick.

Operating Range
µR/hr – 1 to 50,000
CPM – 0.0 to 175,000
nSv/hr – 1 to 500,000
CPS – 0.0 to 2500

Accuracy
Typically ±15% from factory. , ±10% (NIST).

Energy Sensitivity
Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is
approx. 25%. Detects Gamma down to 10 KeV through the detector window. 3600 CPM/mR/hr (Cs-137). Smallest detectable level for I-125 is .02 µCi at contact.

Anti-Saturation
Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.

Alert
Pulsating beeper sounds the alert. Adjustable alert levels are used for µR/hr / CPM, and nSv/hr / CPS.

Display
Backlit liquid crystal display with mode indicators.

Count Light
Red LED flashes with each count.

Audio Indicator
Sounds with each count (can be switched off for silent operation)

Power Requirements
Two (2) AA alkaline batteries (included). Battery life is approx. 1000 hours at normal background radiation levels.

Temperature Range
-10° to +50°C (14° to 122°F)

Weight
217 g (7.7 oz.)

Size
276 x 44 x 64 mm (10.88 x 1.75 x 2.5 in.)

Includes
Carrying Case, Lanyard, Batteries, and Protective Boot. Protective boot fits most industry standard dose rate and compensation filters.

Limited Warranty
1 year limited warranty
