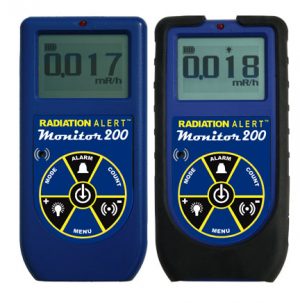

Radiation Alert® Monitor 200

Posted by on Oct 17, 2017 in | 0 comments

Radiation Alert® Monitor 200


Easy to use, great general purpose radiation detector for a wide array of applications.



The Monitor 200 measures alpha, beta, gamma, and x-rays. Its digital display shows readings in your choice of CPM, CPS, μSv/hr, mR/hr, or in accumulated counts. It has a digital display, a red count light, and a beeper that sounds with each count detected. Other features include an adjustable timer, and selectable alert. With the free Observer USB Software Family, you can set computer alarms, calibrate your instrument, and download your collected data from the internal memory for easy reporting!

Halogen-quenched GM tube with thin mica end window. Mica window density 1.5-2.0 mg/cm2. Effective window diameter is .360 inch. Side wall is .012 inch thick.

Operating Range
mR/hr – .001 (1µR) to 200 mR/hr
µSv/hr – .01 to 2000
CPM – 0 to 235,400
CPS – 0 to 3923
Total Counts – 1 to 9,999,000 counts

Typically ±15% from factory, ±10% (NIST)

Energy Sensitivity
1070 CPM/mR/hr referenced to Cs-137
Detects alpha down to 2.5 MeV; typical detection efficiency at 3.6 MeV is greater than 80%.
Detects beta at 50 keV with typical 35% detection efficiency.
Detects beta at 150 keV with typical 75% detection efficiency.
Detects gamma and x-rays down to 10 keV typical through the window, 40 keV minimum through the case.

Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.

Selectable Alert Set Range
mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.

Graphic LCD with Backlight.

Count Light
Red LED flashes with each count.

Audio Indicator
Sounds with each count (can be switched off for silent operation)

USB for use with Observer USB Software Family

Power Requirements
Two AA alkaline batteries (included). Approx. 800 hrs @ background.

Temperature Range
-10° to 50°C (14° to 122°F)

140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)

6.4 oz (0.4 lbs.)

Carrying Case, Xtreme Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software Download, Certificate of Conformance

NIST Calibration

Limited Warranty
1 year limited warranty
