Description

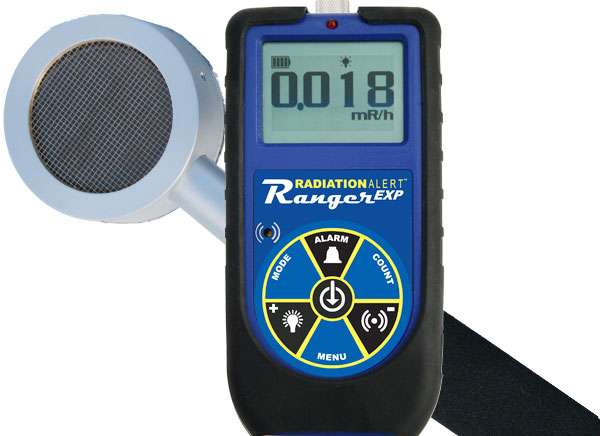

The Ranger EXP offers maximum performance in a lightweight, rugged solution for using your survey meter in the field. The small, handheld unit offers excellent sensitivity to low levels of alpha, beta, gamma, and x-rays. The digital readout is displayed with a red count light and a beeper sounds with each count detected. Other features include an adjustable timer, selectable alert, and with the free Observer USB Software Family, you can download your collected data, set alarms, and calibrate your meter!
Detector
RAP-RS2 Probe – External Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.75 in.).
Operating Range
mR/hr – .001 (1µR) to 100
CPM – 0 to 350,000
µSv/hr – .01 to 1000
CPS – 0 to 5000
Total Counts- 1 to 9,999,000 counts
Accuracy (Referenced to Cs-137)
Typically ±15% from factory, ±10% with NIST Source Calibration
Energy Sensitivity
Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is
approx. 25%. Detects Gamma down to 10 KeV through the detector window. 3340 CPM/mR/hr (Cs-137). Smallest detectable level for I-125 is .02 µCi at contact.
Built-In Efficiencies
Sulfur (S-35), Strontium (Sr/Y-90), Cesium (Cs-137), Phosphorus (P-32), Carbon (C-14), Iodine (I-131), Cobalt (Co-60), and Alpha
Selectable Alert Set Range
mR/hr .001 – 100 and CPM 1 – 350,000. 70db @ 1m. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. Alarm will sound when in Timer Mode when set alarm threshold is reached.
Anti-Saturation
Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.
Averaging Periods
Display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.
Display
Graphic LCD with Backlight
Count Light
Red LED flashes with each radiation event.
Audio Indicator
Internally mounted beeper (can be switched off for silent operation)
Outputs
USB for use with Free Observer USB Software Family
Power Requirements
Two AA alkaline batteries (included). Approx. 800 hrs @ background
Size
140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)
Probe: 260 X 70 X 25 mm (10.25 X 2.75 X 1 in.)
Weight
20 oz (1.25 lbs.)
Includes
RAP-RS2 External GM Probe, 3 ft BNC Cable, Carrying Case, Xtreme Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software Download, Certificate of Conformance
Options
NIST Calibration
Limited Warranty
1 year limited warranty
