Description

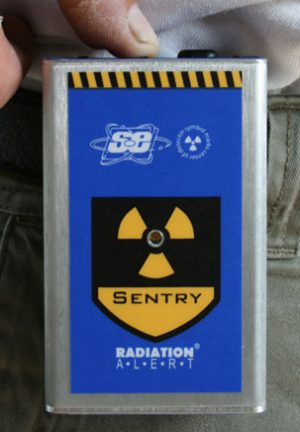

The Radiation Alert® Sentry EC is a Personal Alarming Dosimeter / Ratemeter designed to ensure the safety of personnel that work in occupations with potential x-ray or gamma exposure.
The pocket sized unit has an energy compensated tube for a linear response to gamma and built in memory for recording data points for tracking accumulated exposure. The SentryCom Software option enables you to generate incident reconstruction for analysis. The software also permits you to easily set the vibrating and audio alert to your desired levels for dose and dose rate.
Use the audio switch to choose between audible clicks with each count recieved or a discreet silent mode.
Detector
Energy Compensated GM Tube
Dose Rate Linearity
Better than ±15% up to 15 R
Energy Response
Down to 20 KeV
Accuracy
Typically ±15% of reading (Cs137)
Gamma Sensitivity
1.5 cps/mR/hr (Co60)
Operating Range
Dose Rate: 0.1 mR/hr – 15 R/hr (1 µSv/hr – .15 Sv/hr)
Accumulated Dose: 0.1 mR – 65 R (1 µSv – .65 Sv)
Audible Alarms
Accumulated Dose & Dose Rate, 90db @ 1 ft.
Alarm Thresholds
Default: Dose 500 mR / Rate 50 mR/hr
Sievert Option: Dose 5000 μSv / Rate 500 μSv/hr
Alarm and warning levels are user selectable with the optional SentryCom Software.
Switch Functions
Power, Vibrate & Audible Alert, Silent Vibrating Only Alert, and Audio Clicks On/Off.
Power Requirements
9-Volt Alkaline Battery Approx. 1500 hrs at normal background.
Enclosure
Alodized Aluminum Housing w/ Metal Belt Clip
Outputs
Mini-USB
Temperature Range
-20° – + 50°C (-4° – +122°F)
Weight
243 g (8.6 oz)
Size
106 x 67 x 28 mm (4.2 X 2.7 X 1.1 in)
Limited Warranty
1 year limited
