Armored Cables

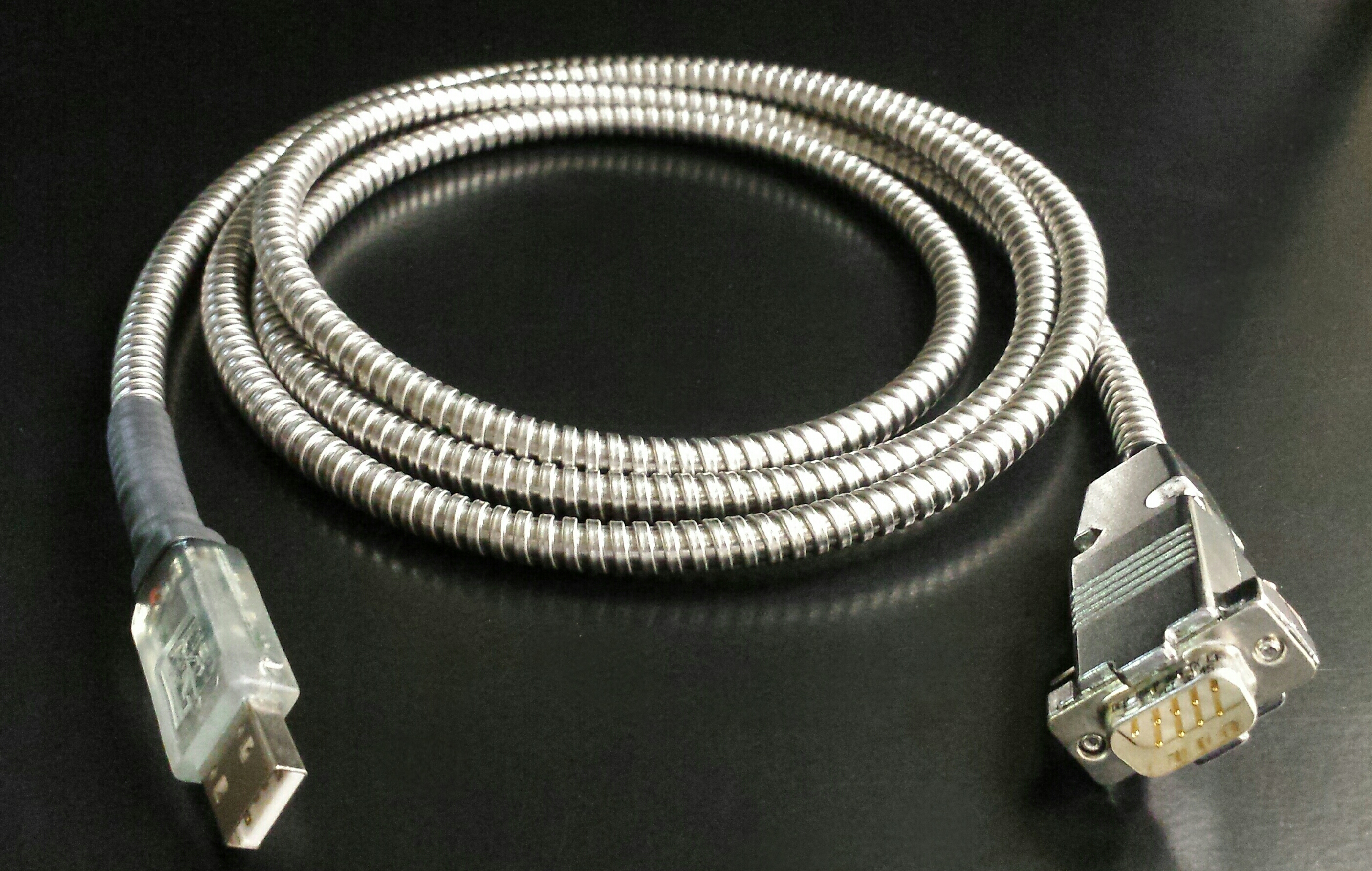

20140709_mcables3Cables are often the weak link when dealing with radiation survey instruments. A defective cable halting a job can cost a lot more than the price of a new cable. Our Armored Cables are rugged and can take a serious beating without tangling, shorting, stripping or breaking. They brave the elements, cope with constant abuse, and look really cool doing it!

We offer two types of armored cables–detector cables and computer cables. Pricing and specifications are listed below. Just contact us at 860-228-0487 or info@radpro.com for pricing and availability.



ARMORED DETECTOR CABLES

Connector Option Part Number Price
C to C ADC39-CC $140.00
SHV to SHV ADC39-SS $110.00
BNC to BNC ADC39-BB $80.00
MHV to MHV ADC39-MM $90.00
C to SHV ADC39-CS $125.00
C to BNC ADC39-CB $110.00
C to MHV ADC39-CM $115.00
SHV to BNC ADC39-SB $90.00
SHV to MHV ADC39-SM $95.00
BNC to MHV ADC39-BM $85.00

Specifications
CABLE
Cable: RG58C/U coax single shielded
Impedance, Ohms: 50
Capacitance, pF/ft (pF/m): 30.8 (101.5)
Operating Range, deg. C: -40 to +80
ARMOR
All cables are encased in stainless steel square lock flexible metal tubing.
Nominal Outside Diameter (inches): 0.299
Material Thickness (inches): 0.010
Minimum Bend Inside Radius (inches): 1
Weight per foot (lbs): 0.045



ARMORED COMPUTER CABLES

Connector Option Price
Serial to Serial $80.00*
USB to USB $70.00*
Serial to USB $75.00*
*Pricing is based on standard 6′ (approx. 2m) cable.
We will custom build any Armored Computer Cable to your specified length for an additional $4/ft.

Specifications
USB
Insulation Resistance: DC400V 10M ohm MIN.
Conductor Resistance: 3 ohm MAX.
SERIAL
Voltage Rating: 300 VRMS
Capacitance 33 pf/ft @ 1 kHz, Nominal Conductor to Conductor
Inductance: 0.18 ┬ÁH/ft, Nominal
ARMOR
All cables are encased in stainless steel square lock flexible metal tubing.
Nominal Outside Diameter (inches): 0.299
Material Thickness (inches): 0.010
Minimum Bend Inside Radius (inches): 1
Weight per foot (lbs): 0.045
